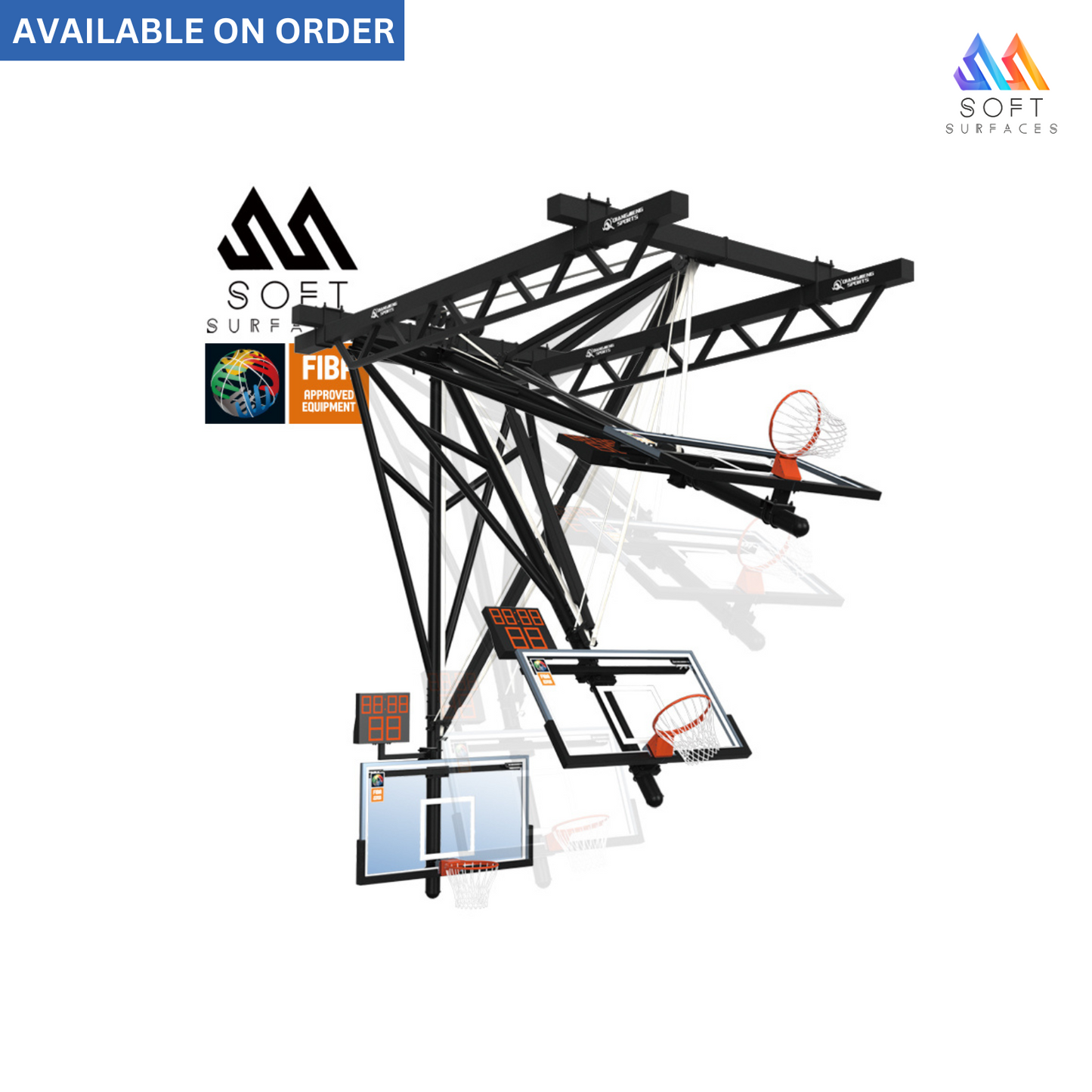

Ceiling Suspended Front-Fold Basketball Goal

Model No: SS-QML-WD2
Specification
Beam gap less than 6.5m, beam height less than 8.5m， system is composed of geared motors, drive system, main post, backboard, rim. Motor voltage 220V，I=200：1，single phase power 0.75KW ，main post structure is welded with galvanized steel pipe φ140×3.5mm and φ89×3.5mm . Horizontal Beam galvanized steel tube 150x150mm with sturdy support.
Backboard
Size ：1828x1070（mm）*12mm，equipped with international heavy duty tempered glass with thickness 12mm. Single pcs weight 81kg, It has the characteristics of high transparency, good weather resistance, anti-aging, corrosion resistance, and not easy to be blurred. The glass of the basketball backboard meets the national certification standard, and is covered with high-grade polyurethane protective strips along the sides under the backboard, which can effectively protect athletes from being hurt when dunking.
Rim
National standard rim which is comprised of φ20 solid round steel, the basket has good bending resistance. The spring is made of thickened high grade spring steel, which meets the international competition standard.
Warranty
The basketball stand is guaranteed for three years (except the padding), and the basketball rim is guaranteed for life time.
Product packing data
Dis-assembled packing for main frame, wooden pallet for frame, carton box for backboard, rim.

Price Is for Single Piece
