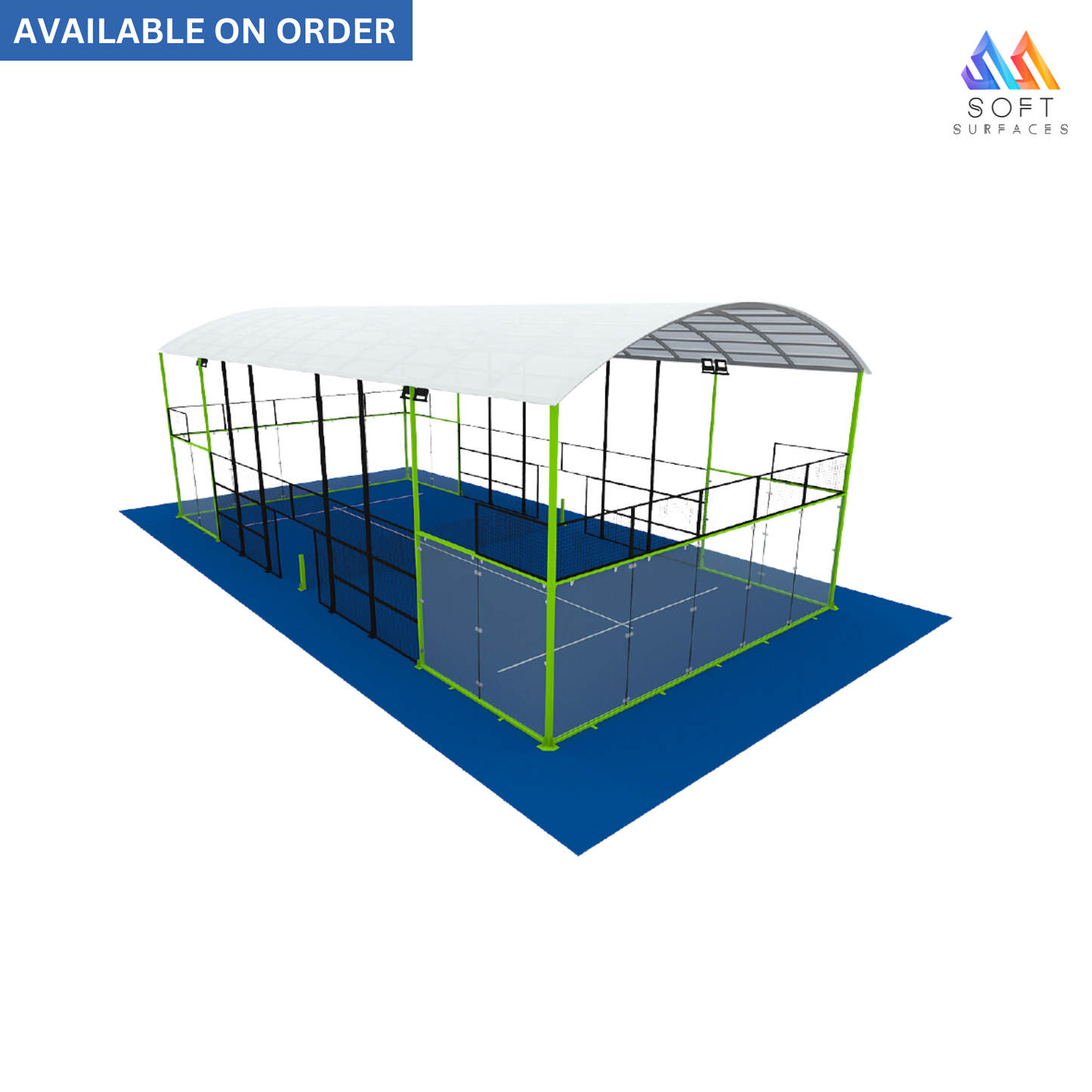

FX-P05 Court Roofed

Metal Structure: Hot dip galvanized Q235

1. Corners: 4 pillars of 100*100*3mm with 6m high
2. 2. Light post: 4 pillars of 100*50*3mm with 6m high
3. 3. Other Post: 4 pillar of 100*50*3mm with 6m high 4 pillars of 100*50*3mm with 3m high
4. 4. Mesh: 42 pcs mesh 1000*2000mm framed with tube 30*50mm 2 pcs mesh 1000*4000mm framed with tube 30*50mm mesh distance: 50*50mm with mesh thickness: 4mm
5. 5. Post and Net: Q235 steel tube 100*50mm, Net with Nylon material.

Roof

Double Pvc-coated with 750g/m2 Height: top height is 8.3m and side height is 6m Frame is Q235 profile with size100x50mm and 30*50mm Painting Electrostatic powder and zinc powder coating

Glass

1. Tempered glass with 12mm thickness with standard EN12150-2:2004
2. 2.18pcs of 1996*3000mm
3. 3. Polished edges and countersunk hole, in a single piece, subject to reinforcement heat treatment, tempering process and approved. Wooden carton package
